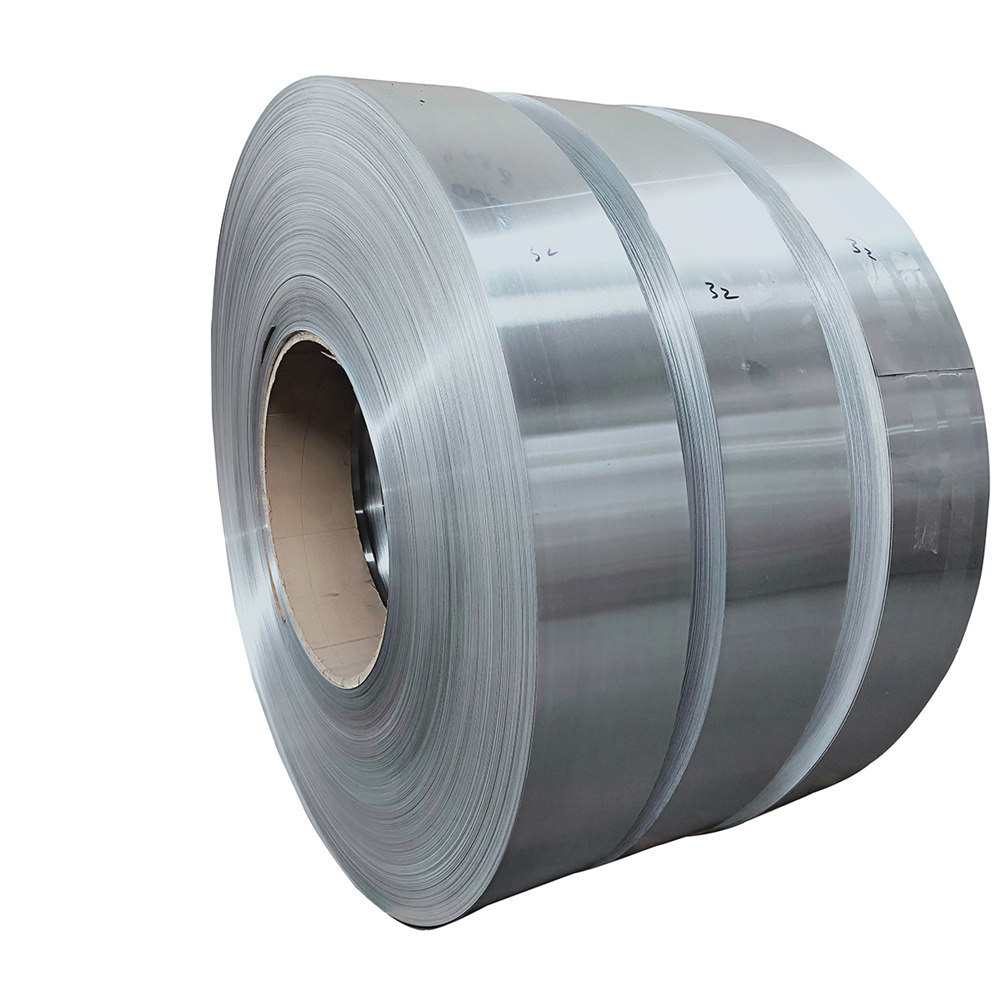

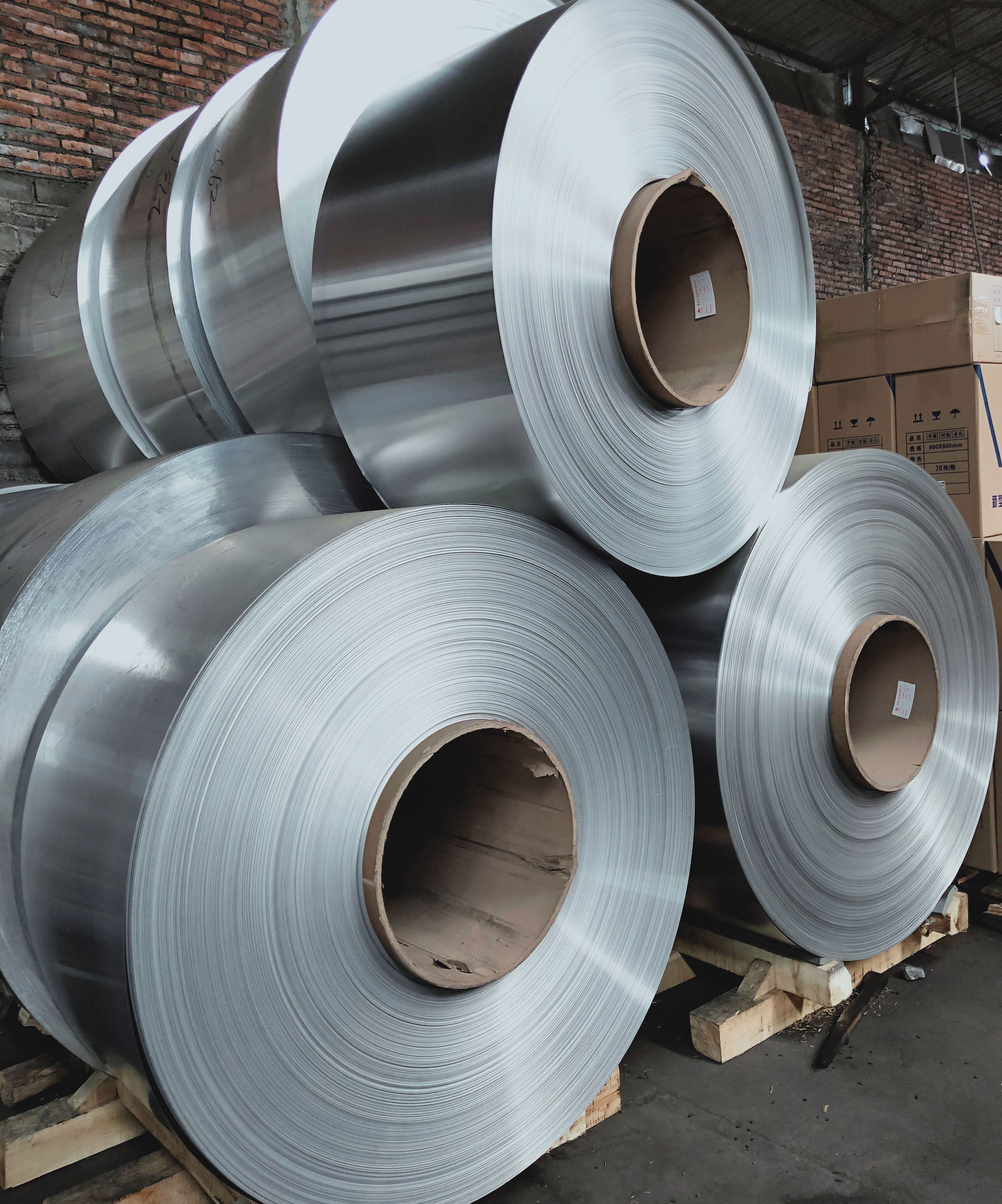

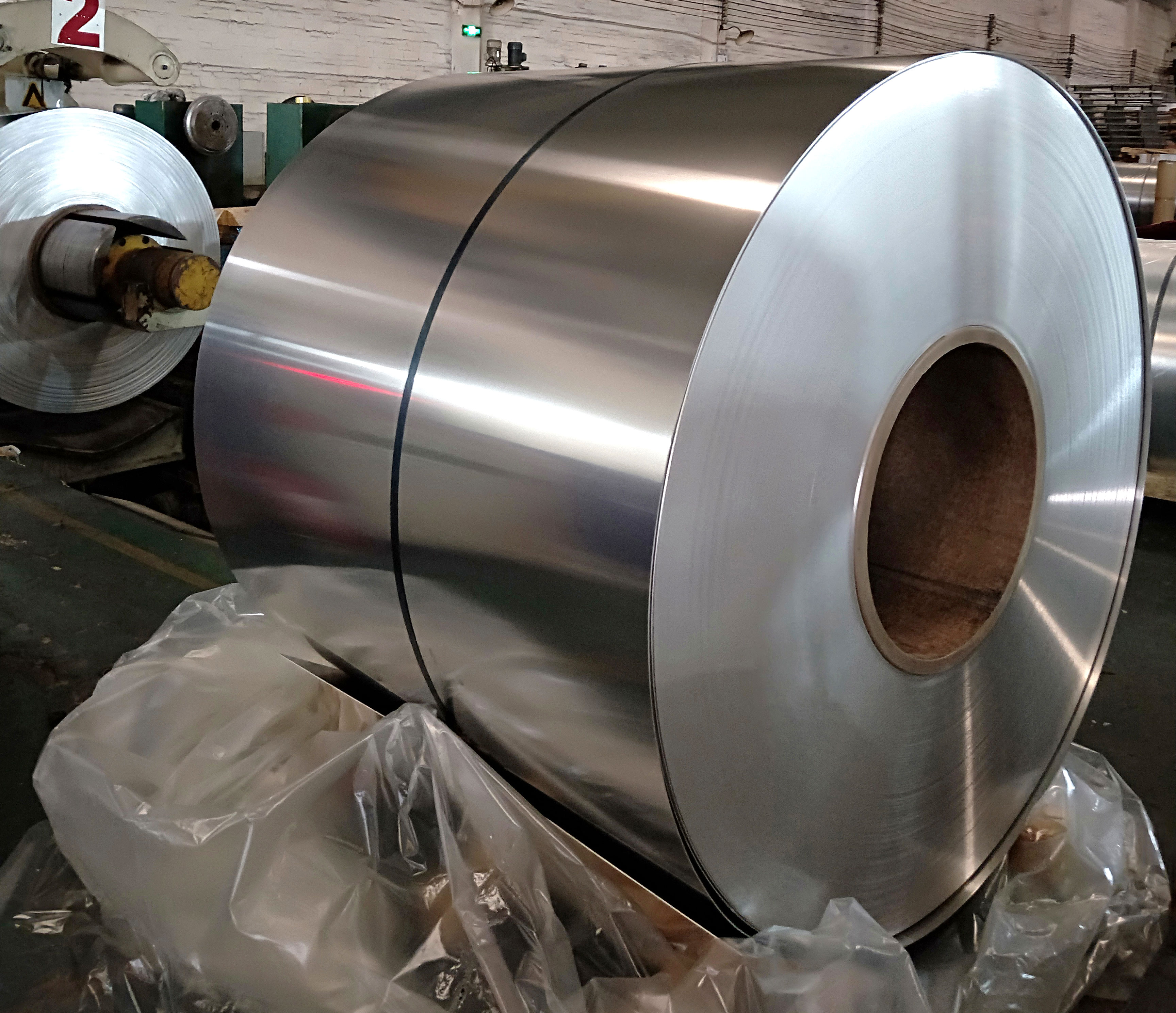

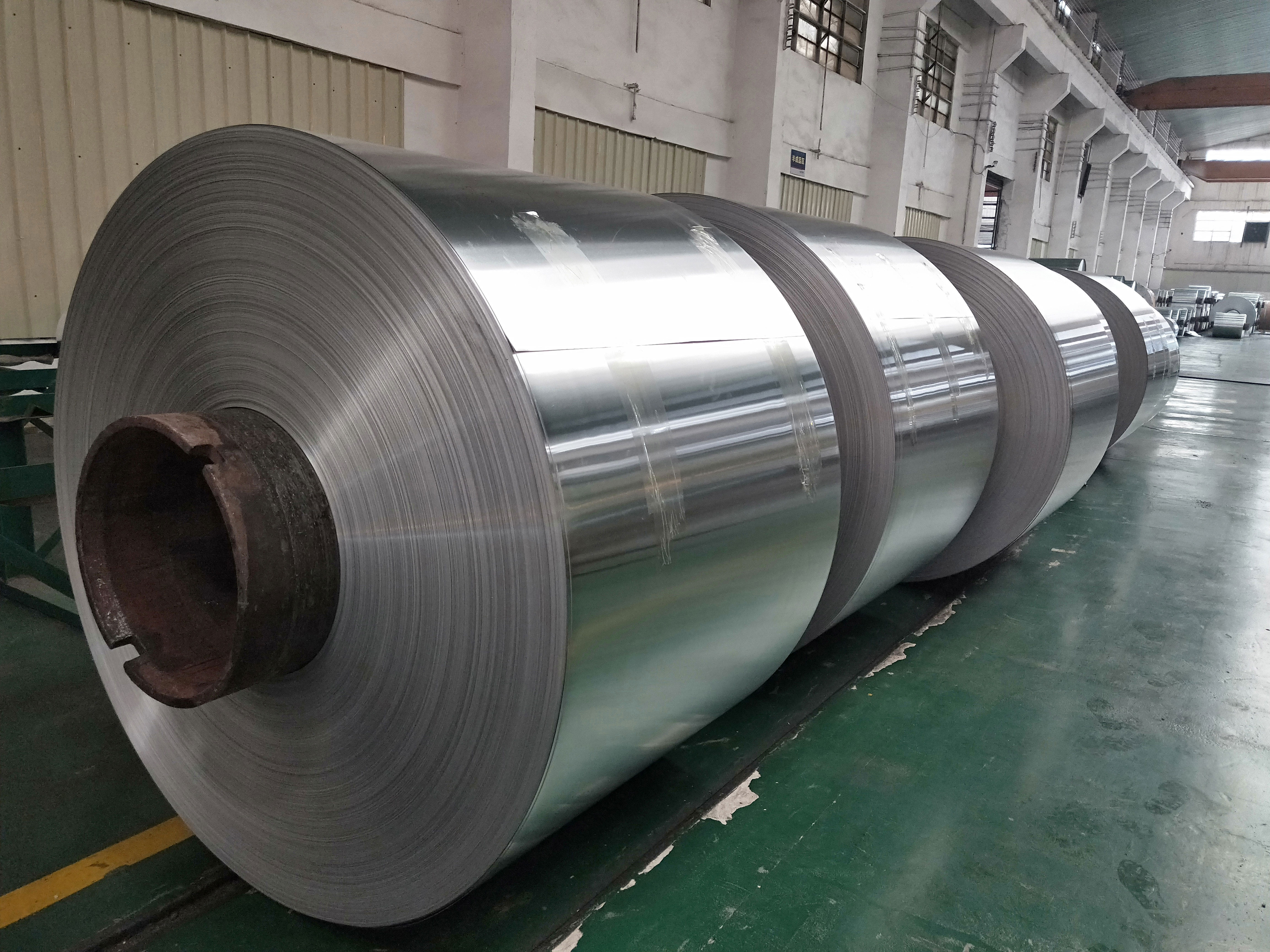

High Quality 1060/1050/1070/1100 H14/H24/h16/H26 Aluminum Alloy coil/strip | aluminum sheet metal
Ze 'ao is a large modern aluminum processing enterprise integrating scientific research, processing and manufacturing.The company can produce 1-8 series aluminum foil products, complete specifications, huge capacity, to meet your personalized processing needs.
Product introduction
Aluminum alloy sheet use: automotive aluminum alloy, 3C products, computer brackets, high-end curtain wall panels, high-end oxidizing materials, cans, lids, shutters, trolleys, aluminum furniture, door panels / door handles, signs, decoration, etc.
aluminum she
Mechanical properties:Tensile strength (σb): 170～305MPa
Conditional yield strength σ0.2 (MPa)≥65
Modulus of elasticity (E): 69.3~70.7Gpa
The annealing temperature was 345 °C.
Product Description
Tempering:O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34H36,H38,H111,H112,H114,H 116,H321
Surface：mill,bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness: 0.15-500mm;
Width: 20-1300mm;
Length: 500-6000mm or above;
Thickness tolerance: + 0.05mm;
Width / length tolerance: + 2mm;
Minimum quantity: 5-10 tons;
Market application
Aluminum plate is widely used in the manufacture of fuel tanks, oil pipes and transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, molds, etc. It can also be used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lube oil conduits, various liquid containers and other small load parts made with deep drawing: Wire is used to make rivets.

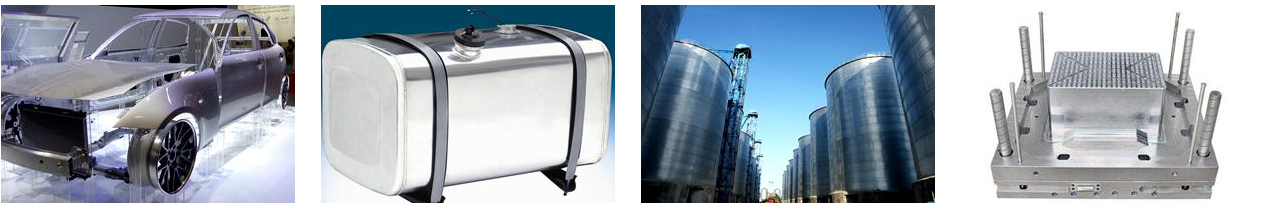

Car Lightweight fuel tank Aluminum bin Aluminum mold
Five Advantages
aluminum sheet metal
Aluminum alloy sheet use: automotive aluminum alloy, 3C products, computer brackets, high-end curtain wall panels, high-end oxidizing materials, cans, lids, shutters, trolleys, aluminum furniture, door panels / door handles, signs, decoration, etc.
aluminum she
Mechanical properties:Tensile strength (σb): 170～305MPa
Conditional yield strength σ0.2 (MPa)≥65
Modulus of elasticity (E): 69.3~70.7Gpa
The annealing temperature was 345 °C.
Product Description
Tempering:O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34H36,H38,H111,H112,H114,H 116,H321
Surface：mill,bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness: 0.15-500mm;
Width: 20-1300mm;
Length: 500-6000mm or above;
Thickness tolerance: + 0.05mm;
Width / length tolerance: + 2mm;
Minimum quantity: 5-10 tons;
Market application
Aluminum plate is widely used in the manufacture of fuel tanks, oil pipes and transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, molds, etc. It can also be used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lube oil conduits, various liquid containers and other small load parts made with deep drawing: Wire is used to make rivets.
Car Lightweight fuel tank Aluminum bin Aluminum mold
Five Advantages
- Complete product range: Has a complete range of aluminum, aluminum, aluminum tape products
- 15 years of production and sales experience: Customized products can be cut as required, good quality and good price
- Excellent distribution team: The company has 10 delivery vehicles, ready to ship

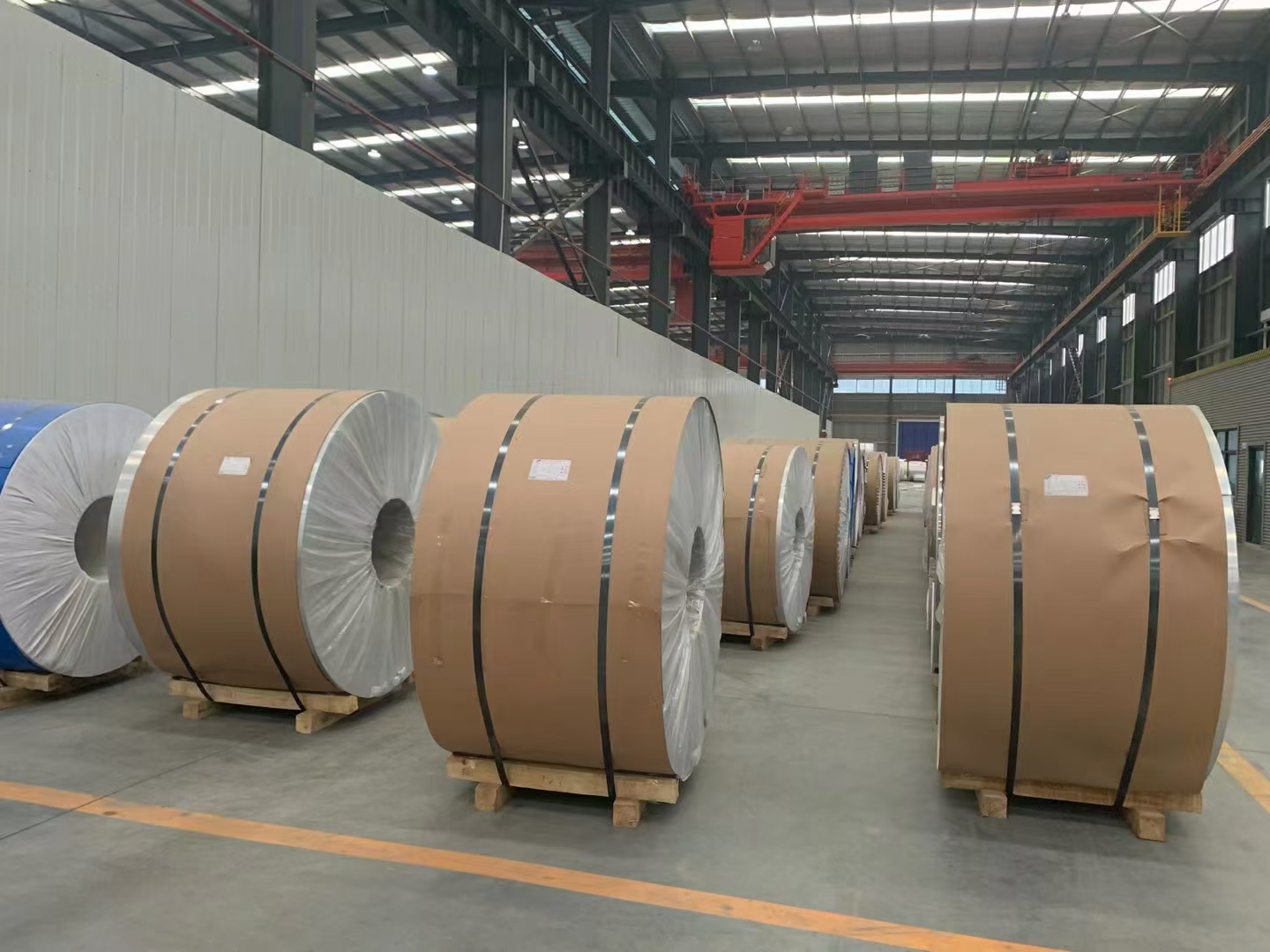

- Sufficient spot sale: Stock spot nearly 60,000 tons

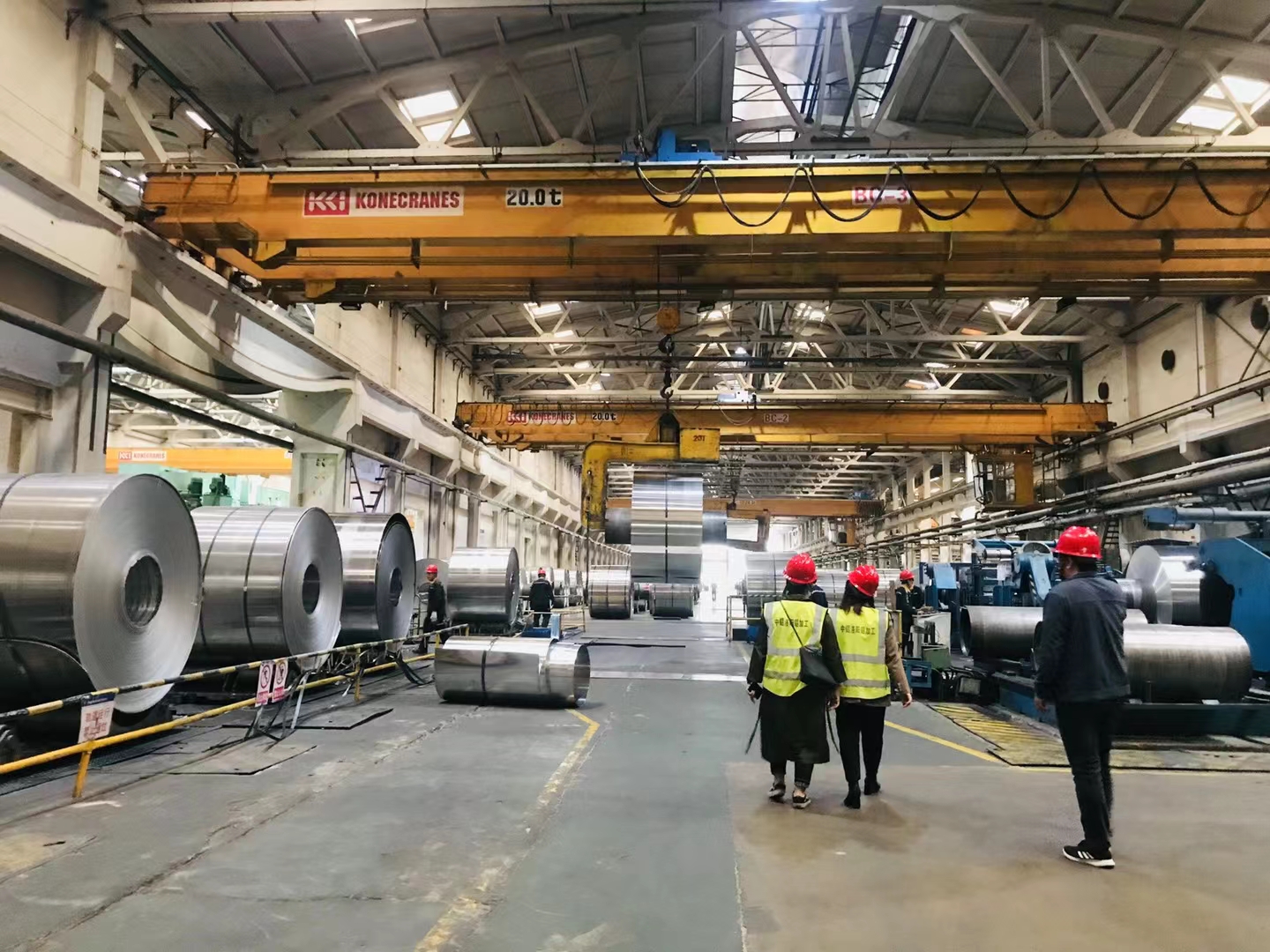

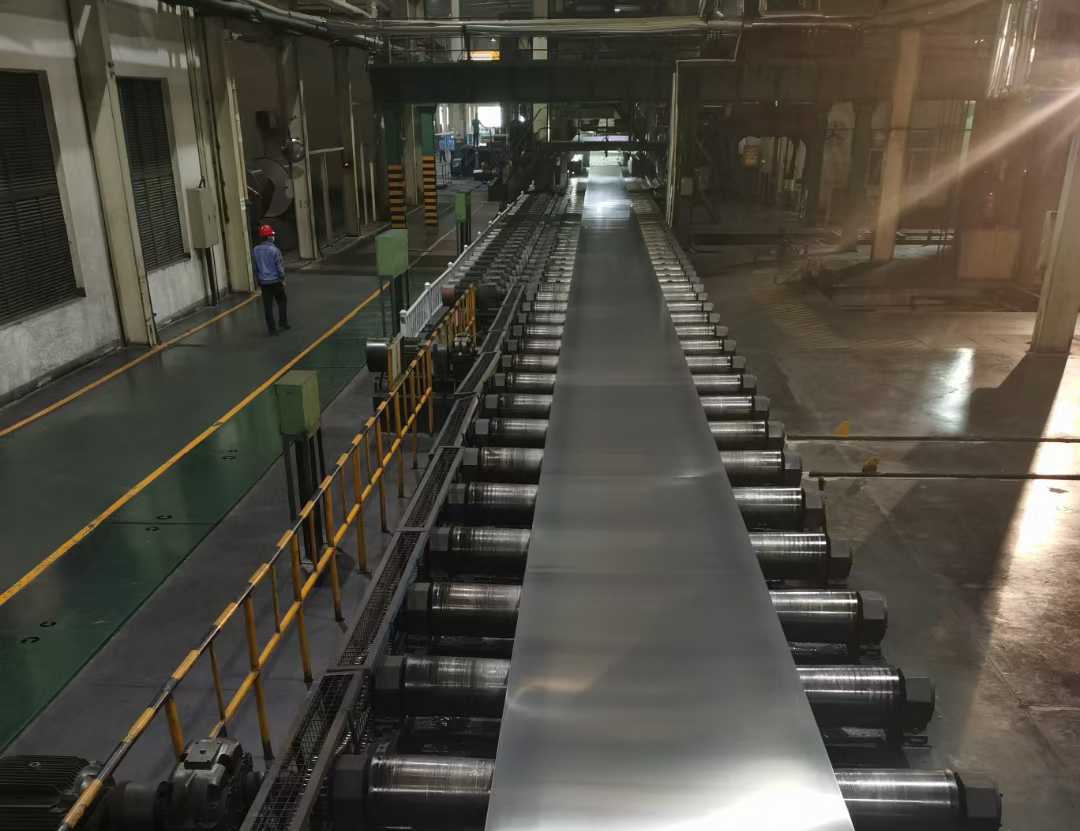

- Production equipment and production line: The company has a slitter and tablet scale precision
Chemical Compositon of Aluminum
| Grade | Chemical Composition(%) | Others | AI | ||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Single | Tol | 99.5 | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.6 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.7 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.03 | - | 99 |
| 1100 | 0.95 | 0.05~0.4 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | Remains | |
| 3003 | 0.6 | 0.7 | 0.05~0.2 | 1.0~1.5 | - | - | 0.1 | - | 0.05 | 0.15 | Remains |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8 | - | 0.25 | - | 0.05 | 0.15 | Remains |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Remains |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3~0.8 | 0.2~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | - | 0.05 | 0.15 | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~0.1 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Remains |
| 5086 | 0.4 | 0.5 | 0.1 | 0.2~0.7 | 3.5~4.5 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remains |
| 6063 | 0.2~0.6 | 0.35 | 0.1 | 0.1 | 0.45~0.9 | 0.1 | 0.1 | 0.1 | 0.05 | 0.15 | Remains |
| 6041 | 0.4~0.8 | 0.7 | 0.15~0.4 | 0.15 | 0.04~0.35 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Remains |
Market application
1060 aluminum plate is commonly used for lithium battery soft connection, busbar, road signage, charging pile, aluminum gasket, billboard building exterior decoration, high-rise and factory exterior decoration, office lattice decoration, lamp holder, fan leaf, electronic parts, kitchenware , reflective equipment and other fields.
1060 aluminum plate is commonly used for lithium battery soft connection, busbar, road signage, charging pile, aluminum gasket, billboard building exterior decoration, high-rise and factory exterior decoration, office lattice decoration, lamp holder, fan leaf, electronic parts, kitchenware , reflective equipment and other fields.

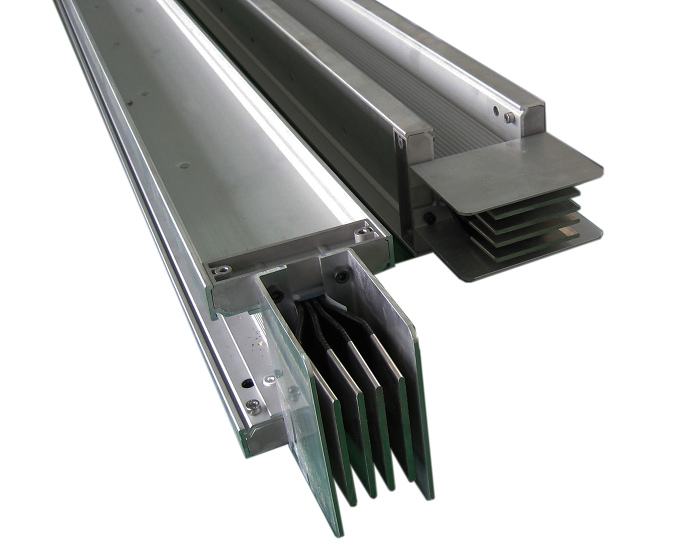

Busbar aluminum

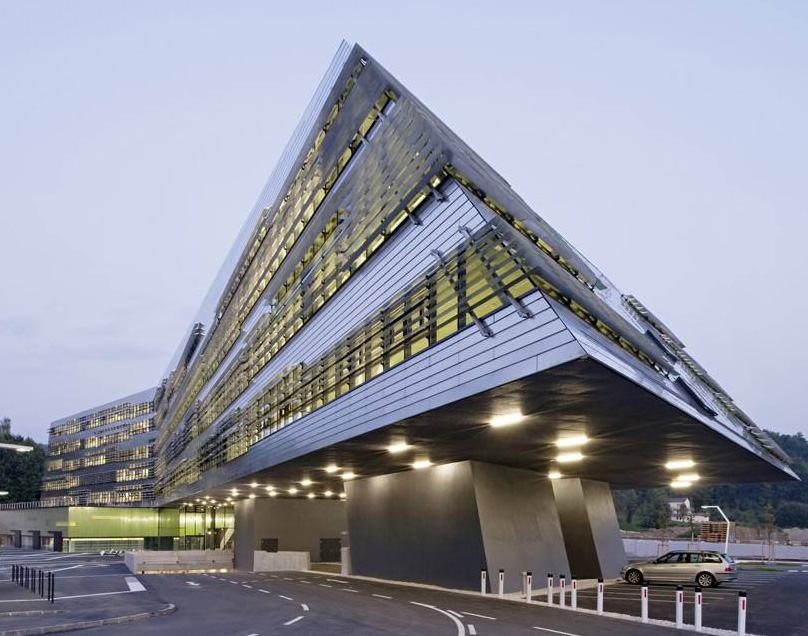

Curtain wall panel
Decorative aluminum

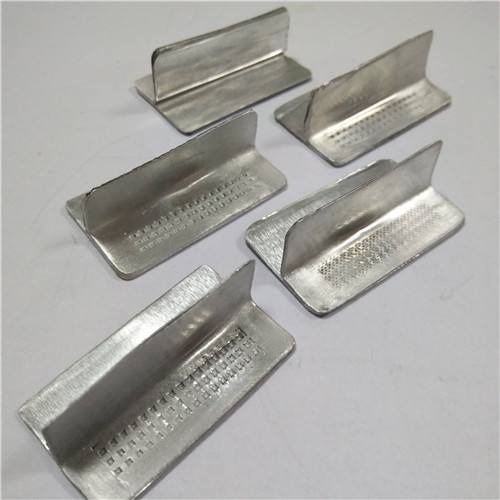

Lithium battery soft connection
