Customized 3003 aluminum coil manufacturer.

Popular 3003 Aluminium Coil for Various Use | aluminum coil

3003 aluminum alloy is a typical Al-Mn alloy with good formability, very good corrosion resistance and weldability. It is commonly used in the manufacture of power battery casings in light-weight vehicles, cookware, food storage devices, and tanks on transportation equipment. , warehouse, sheet metal pressure vessels and pipes.

Product introductionaluminum she
Mechanical properties:Tensile strength (σb): 170～305MPa
Conditional yield strength σ0.2 (MPa)≥65
Modulus of elasticity (E): 69.3~70.7Gpa
The annealing temperature was 345 °C.

Product Description
Tempering:O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34H36,H38,H111,H112,H114,H 116,H321
Surface：mill,bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness: 0.15-500mm;
Width: 20-1300mm;
Length: 500-6000mm or above;
Thickness tolerance: + 0.05mm;
Width / length tolerance: + 2mm;
Minimum quantity: 5-10 tons;

Market application
Hot-rolled 3003 aluminum plate typical use: power battery casing, automobile heat shield, fuel tank, water tank, automobile skid plate, battery explosion-proof valve, battery cover, automobile interior, signage, cans, medical equipment, etc.;

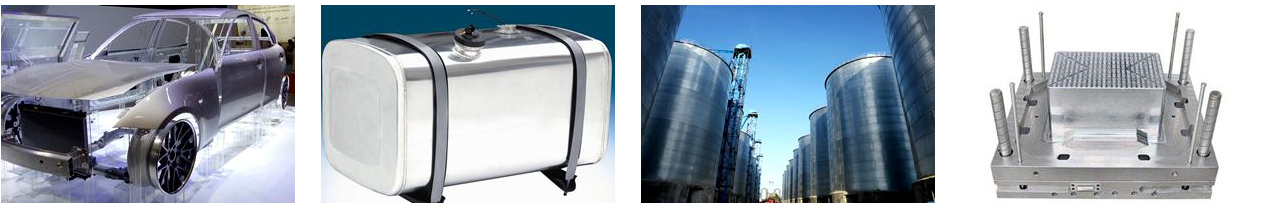

Car Lightweight fuel tank Aluminum bin Aluminum mold

Five Advantages

Complete product range: Has a complete range of aluminum, aluminum, aluminum tape products
15 years of production and sales experience: Customized products can be cut as required, good quality and good price
Excellent distribution team: The company has 10 delivery vehicles, ready to ship
Sufficient spot sale: Stock spot nearly 60,000 tons
Production equipment and production line: The company has a slitter and tablet scale precision

aluminum coil

Chemical Compositon of Aluminum

Grade	Chemical Composition(%)								Others		AI
Grade	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Single	Tol	99.5
1050	0.25	0.4	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.6
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.7
1070	0.2	0.25	0.04	0.03	0.03	-	0.04	0.03	0.03	-	99
1100	0.95		0.05~0.4	0.05	-	-	0.1	-	0.05	0.15	Remains
3003	0.6	0.7	0.05~0.2	1.0~1.5	-	-	0.1	-	0.05	0.15	Remains
3004	0.3	0.7	0.25	1.0~1.5	0.8	-	0.25	-	0.05	0.15	Remains
3005	0.6	0.7	0.3	1.0~1.5	0.2~0.6	0.1	0.25	0.1	0.05	0.15	Remains
3105	0.6	0.7	0.3	0.3~0.8	0.2~0.8	0.2	0.4	0.1	0.05	0.15	Remains
5052	0.25	0.4	0.1	0.1	2.2~2.8	0.15~0.35	0.1	-	0.05	0.15	Remains
5083	0.4	0.4	0.1	0.4~0.1	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Remains
5754	0.4	0.4	0.1	0.5	2.6~3.6	0.3	0.2	0.15	0.05	0.15	Remains
5005	0.3	0.7	0.2	0.2	0.5~1.1	0.1	0.25	-	0.05	0.15	Remains
5086	0.4	0.5	0.1	0.2~0.7	3.5~4.5	0.05~0.25	0.25	0.15	0.05	0.15	Remains
6063	0.2~0.6	0.35	0.1	0.1	0.45~0.9	0.1	0.1	0.1	0.05	0.15	Remains
6041	0.4~0.8	0.7	0.15~0.4	0.15	0.04~0.35	0.04~0.35	0.25	0.15	0.05	0.15	Remains

Market Application
Commonly used in power battery casings, ships, ships, vehicle materials, automotive and aircraft board welding parts, pressure vessels requiring strict fire protection, refrigeration equipment, air conditioning tubes, cans, TV towers, drilling equipment, mechanical parts, transportation Equipment, armor, etc. It is also widely used in kitchen utensils, food and chemical products, storage tanks, tanks for transporting liquid products, various pressure vessels and pipes processed by thin plates, heat exchangers, rivets, welding wires, washing machine cylinders, etc.
